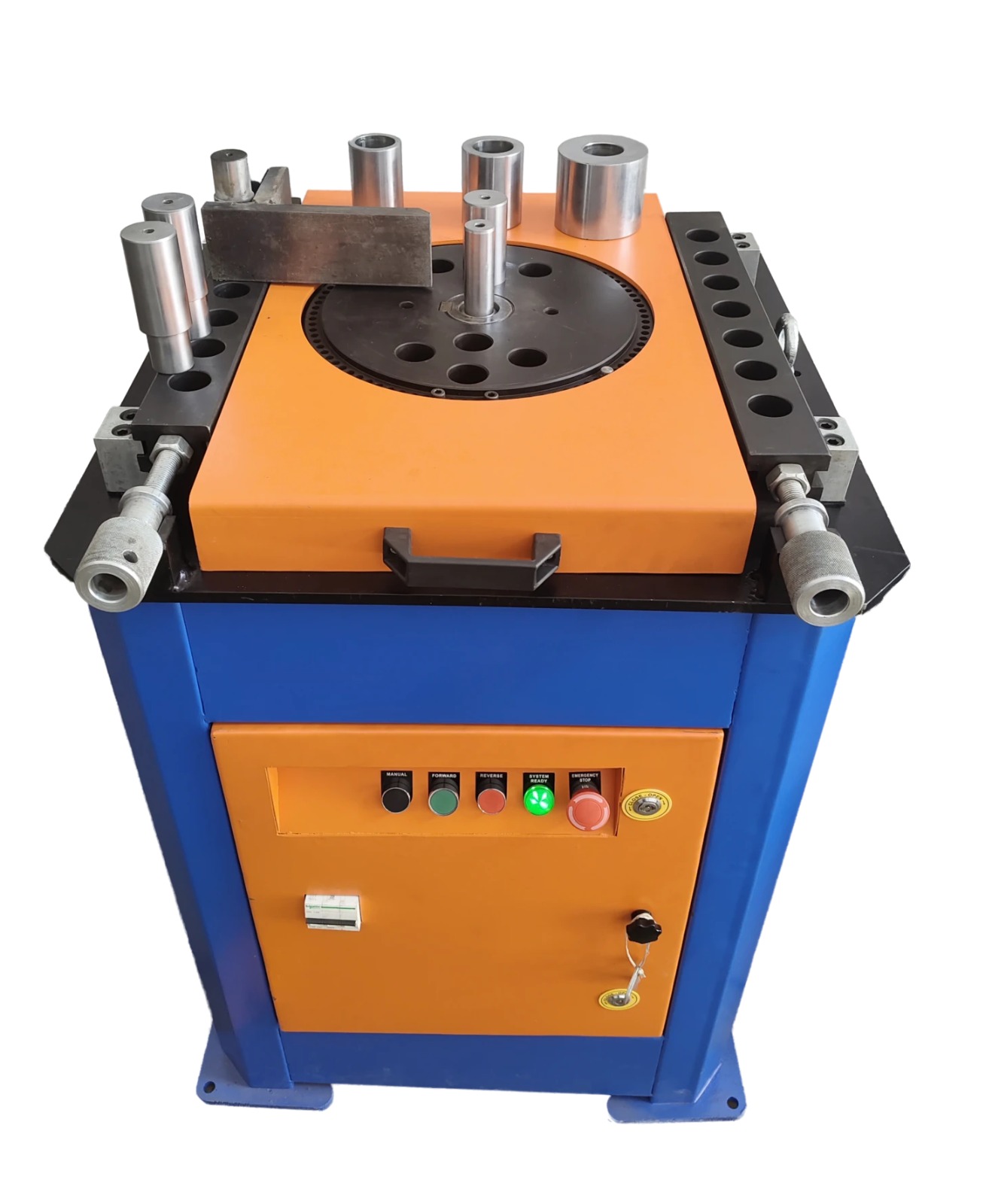

SKYMAC SBM 42 Bar Bending Machine

Skymac Tmt Bar Bending Machines are specially designed as per the Indian working conditions with all required safety. We use advanced CNC Laser cutting, CNC turning, and VMC for manufacturing parts. We use a planetary gearbox design, which helps in reducing speed and improving performance. Also alloy steel material of gears and pins with suitable heat treatment and flame hardening improves the life of the gearbox & machine.
We are using all electircal components with CE certified and reputed make(Schneider, GIC). Use of imported heavy duty foot switch with a top cover for protection from falling debris & material at sites.
You will find our machines working across all major cities in India and also on variety of infrastructure projects across India.Bending Machine All The Pins, Bushes & Roller Are Electroplating for The protection Against rust & Better mannificent Quality.

Features:

we are manufactured sheet metal body of these machines on cnc punching and bending
we are using the advance cnc laser cutting , cnc turning and vmc for manufacturing parts in machine
Body frame design is improved, vertical and horizontal member size is increased making it more robust and steady.
Robust design machine frame to withstand load during bending operations.
Under Voltage Over Voltage Protection.
Heavy duty Planetory Gearbox Synthetic Grease Filled.
Noice and Vibration free Operating.
Maintenance free Electrical Braking system.
Imported fully enclosed IP55 foot pedal.
Rigid sliding block with V-guide provides more ruggedness.
Completely powder coated machine body for better protection and aesthetics.
Ease of operation
Long Life of Machine

Specifications:

Model	SBM42
Bend Wheel Speed	9 RPM
Motor Power	3.7 kw (5 HP)
Bend Wheel Dia	350
Dimensions L X W X H	810 x 710 x 970 Mm
Weight	375 kg

42 SBM Capacity Chart Details :

Model	Bar Spec	Bar Dia
		36	32	25	20	16	12	10	8
SBM 42	No. of Bar - FE 500(50 kg/mm2)	1	1	1	2	3	3	4	6
	No. of Bar - FE 500D(60 kg/mm2	1	1	1	1	2	3	4	5
	No. of Bar - FE 550D(70 kg/mm2)		1	1	1	2	3	4	5
	No. of Bar - FE 500S(78 kg/mm2)			1	1	2	3	4	5
